Rotary kiln
Rotary kiln
Advantage characteristics:
1. High degree of mechanization and large production capacity.
2. The fluid passes through the cylinder with low resistance and low functional consumption.
3. The adaptability to material properties is relatively strong.
4. The operation is stable, the operation cost is low, and the uniformity of product drying is good.
working principle:
After the wet material is put into one end of the dryer, the material is evenly distributed and dispersed in the dryer under the flipping of the inner tube, and the material is fully contacted with the cocurrent (countercurrent) hot air to accelerate the drying heat transfer. Passed to the driving force. In the drying process, under the action of the inclined plate and the hot air flow, the material can be adjusted to the other side of the dryer to discharge the finished product.
Technical Parameters:
|
Rotary kiln technical reference table |
||||||||||
|
Product specifications(m) |
Kiln diameter(m) |
Kiln length(m) |
Kiln slope(%) |
Yield(t/d) |
Rotating speed(r/min) |
Motor Power(kw) |
total weight(t) |
Remarks |
||
|
Φ2.5×40 |
2.5 |
40 |
3.5 |
180 |
0.44-2.44 |
55 |
149.61 |
|
||
|
Φ2.5×50 |
2.5 |
50 |
3 |
200 |
0.62-1.86 |
55 |
187.37 |
---- |
||
|
Φ3.0×48 |
3 |
48 |
3.5 |
700 |
0.6-3.48 |
100 |
237 |
Kiln decomposition kiln |
||
|
Φ2.8×44 |
2.8 |
44 |
3.5 |
450 |
0.437-2.18 |
55 |
201.58 |
Kiln decomposition kiln |
||
|
Φ3.0×45 |
3 |
45 |
3.5 |
500 |
0.5-2.47 |
75 |
210.94 |
---- |
||
|
Φ3.2×50 |
3.5 |
50 |
4 |
1000 |
0.6-3 |
125 |
278 |
Kiln decomposition kiln |
||
|
Φ3.3×52 |
3.3 |
52 |
3.5 |
1300 |
0.266-2.66 |
125 |
283 |
Kiln decomposition kiln |
||
|
Φ3.5×54 |
3.5 |
54 |
3.5 |
1500 |
0.55-3.4 |
220 |
363 |
Kiln decomposition kiln |
||
|
Φ4.0×56 |
4 |
56 |
4 |
2300 |
0.41-4.07 |
315 |
456 |
Kiln decomposition kiln |
||

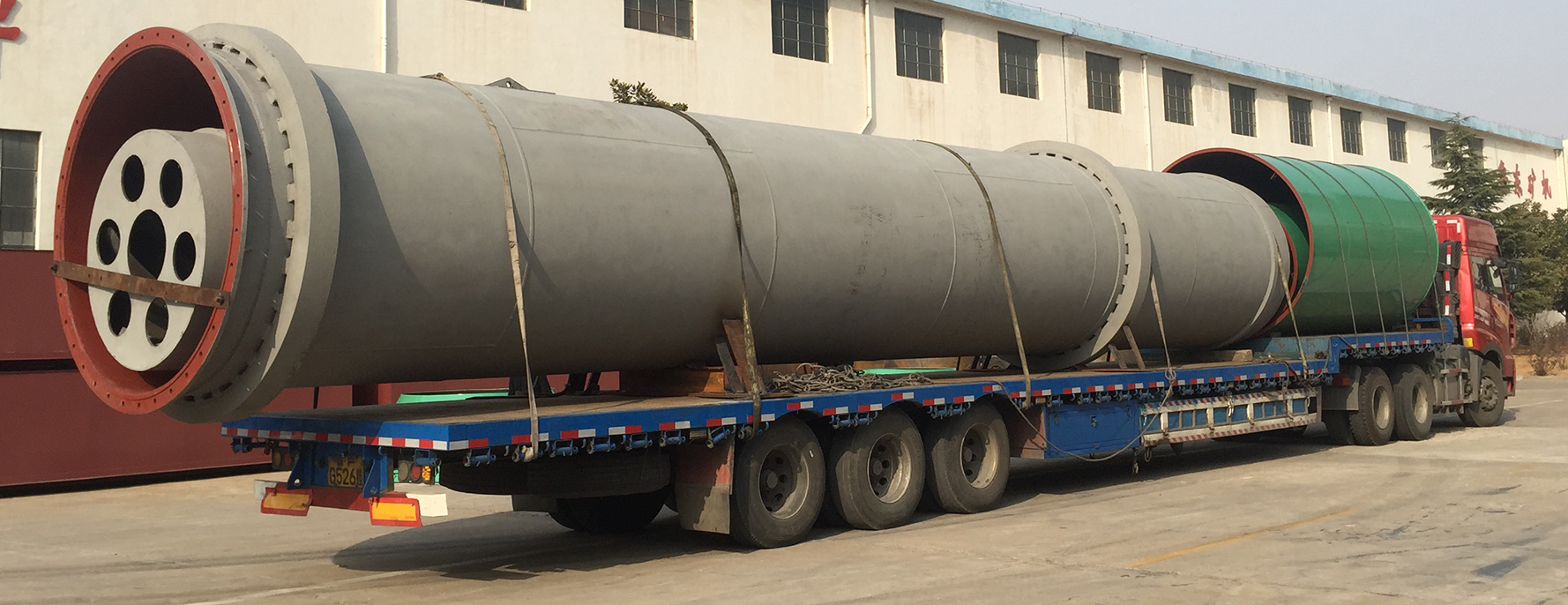

Case picture
